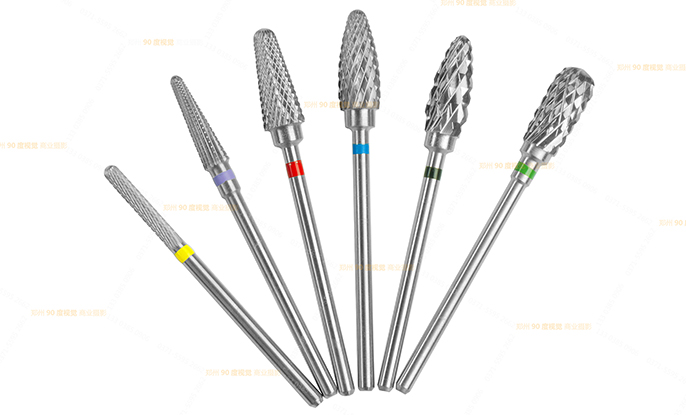

Smedent super quality Carbide cutters have been engineered and developed with the latest high end Swiss Machinery to enable maximum cutting efficiency, accuracy ,smooth and better running with a long life; We have Super Fine (yellow Ring),Fine(Red Ring) and Standard(Blue Ring) working for Precious & non-precious Alloy and composites; Coarse(Green Ring) Super Coarse (Black Ring),Standard(Blue Ring) working for Acrylics and Plaster , and Fine (Purple Ring) working for Acrylics and Titanium; And Cutting Toothing includes cross cut ,plain cut and plain cut with fine spinal groove.


Technical Parameters
Equipment & Package
CE,FDA,ISO Certificate

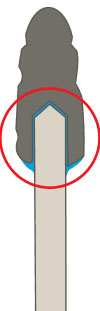

Orthodontic bur The above is an example of technical complex carbide soldering when the shaft is inserted into the carbide head. This technique significantly improves the stability, centricity of the cutter leading to nil vibrations, almost minimal breakage and a smooth running
ISO110
Cross cut super fine carbide burs manufacturer carbide burs companies carbide bur wholesale carbide burs china Taper Pointed bur fg burs manufacturer fg burs Flat Fissure bur Inverted Cone bur round carbide bur
L mm 8.0 16.0 17.0 8.0 8.0 13.0 14.0 14.0 14.0 5.5
Size mm 2.3 2.3 2.3 1.6 2.3 4.5 2.3 4 4.5 2.3
Order.No. 6630101 6630102 6630103 6630104 6630105 6630106 6630107 6630108 6630109 6630110
ISO NO.500.104 141110023 145110023 198110023 198110016 198110023 200110045 201110023 201110040 201110045 225110023

Cross cut super fine
L mm 5.5 5.0 5.0 7.0 11.5 4.0 8.0 16.0
Size mm 2.3 2.3 2.3 2.3 4.0 2.3 2.3 2.3
Order.No. 6630112 6630113 6630114 6630115 6630117 6630118 6630119 6630120
ISO NO.500.104... 237110023 237110023 237110029 257110023 274110040 277110023 289110023 292110023

ISO 140
Cross cut fine Ceramic Bur Fissure Bur carbide burs companies Needle bur Esthetic Finishing Bur carbide bur wholesale Trimming Bur carbide burs china fg burs manufacturer End cutting bur
L mm 2.0 16.0 8.0 12.5 16.0 17.0 8.0 8.0 11.5 13.0
Size mm 2.3 2.3 2.3 6.0 2.3 2.3 1.6 2.3 3.1 4.5
Order.No. 6630201 6630202 6630203 6630204 6630205 6630206 6630207 6630208 6630209 6630210
ISO NO.500.104 001140023 116140023 143140023 143140060 145140023 180140023 198140016 198140023 199140031 200140045

Cross cut fine Zekrya Inverted Cone bu
L mm 14.0 14.0 15.0 5.5 5.0 5.0 12.0 11.0 9.0 12.0
Size mm 2.3 4.0 6.0 2.3 2.3 2.9 6.0 6.0 4.0 6.0
Order.No. 6630211 6630212 6630213 6630214 6630216 6630217 6630218 6630219 6630221 6630222
ISO NO.500.104... 201140023 201140040 201140060 225140023 237140023 237140023 237140029 237140060 257140040 257140060

Cross cut fine
L mm 8.0 12.0 14.0 14.0 4.0 9.5 8.0 16.0
Size mm 4.0 6.0 6.0 6.0 2.3 6.0 2.3 2.3
Order.No. 6630223 6630224 6630226 6630227 6630229 6630230 6630233 6630234
ISO NO.500.104... 263140040 263140060 275140060 275140060 277140023 277140060 289140023 292170023

ISO190
Cross cut standard
L mm 2.3 2.4 2.8 3.3 3.5 4.5 5.5 7.0 12.5 16.0
Size mm 2.5 2.7 3.0 3.5 4.0 4.0 6.0 8.0 6.0 2.3
Order.No. 6630307 6630308 6630310 6630312 6630313 6630314 6630315 6630316 6630317 6630318
ISO NO.500.104... 001190025 001190027 001190030 001190035 001190040 001190050 001190060 001190080 113190060 116190023

Cross cut standard
L mm 8.0 12.5 16.0 17.0 8.0 8.0 11.5 13.0 14.0 14.0
Size mm 2.3 6.0 2.3 2.3 1.6 2.3 3.1 4.5 2.3 4.0
Order.No. 6630319 6630320 6630321 6630322 6630326 6630327 6630328 6630329 6630330 6630331
ISO NO.500.104... 141190023 143190060 145190023 180190016 198190031 198190023 199190031 200190045 201190023 201190040

Cross cut standard
L mm 15.0 5.5 5.5 5.5 5.0 5.0 12.0 11.0 7.0 9.0
Size mm 6.0 1.6 2.3 2.3 2.3 2.9 6.0 6.0 2.3 4.0
Order.No. 6630332 6630333 6630334 6630335 6630336 6630337 6630338 6630339 6630341 6630342
ISO NO.500.104... 201190060 225190016 225190023 237190023 237190023 237190029 237190060 237190060 257190023 257190040

Cross cut standard
L mm 12.0 14.0 8.0 12.0 11.5 14.0 14.0 4.0 9.5 8.0 16.0
Size mm 6.0 6.0 4.0 6.0 4.0 6.0 6.0 2.3 6.0 2.3 2.3
Order.No. 6630343 6630344 6630345 6630346 6630348 6630349 6630350 6630352 6630353 6630354 6630355
ISO NO.500.104... 257190060 257190060 263190040 263190060 274190040 275190060 275190060 277190023 277190060 289190023 292190023

ISO 220
Cross cut coarse
L mm 12.5 13.0 15.0 12.0 11.0 12.0 12.0 14.0 14.0
Size mm 6.0 4.5 6.0 6.0 6.0 6.0 6.0 7.0 6.0
Order.No. 6630401 6630402 6630403 6630404 6630405 6630406 6630407 6630408 6630409
ISO NO.500.104... 143220060 200220045 201220060 237220060 257220060 257220060 263220060 263220070 275220060

ISO 223
Cross cut super coarse
L mm 12.5 14.0 14.0
Size mm 6.0 7.0 6.0
Order.No. 6630601 6630602 6630603
ISO NO.500.104... 143223060 263223070 275223060

ISO 102
Plain cut super fine
L mm 16.0 14.0 14.0 16.0
Size mm 2.3 2.3 4.5 2.3
Order.No. 6630701 6630705 6630706 6630708
ISO NO.500.104... 145102023 201102023 201102045 292102023

ISO 133
Plain cut fine
L mm 16.0 16.0 4.0 14.0 14.0 5.0 8.0 16.0
Size mm 2.3 2.3 0.9 2.3 4.0 2.3 1.2 2.3
Order.No. 6630801 6630802 6630803 6630804 6630805 6630806 6630807 6630808
ISO NO.500.104... 116133023 145133023 196133009 201133023 201133023 237133023 289133012 292133023

ISO 175
Plain cut standard
L mm 2.4 2.8 3.0 4.3 5.3 12.5 12.5 11.5 13.0 14.0
Size mm 2.7 3.1 4.0 5.0 6.0 6.0 6.0 3.1 4.5 4.0
Order No. 6630901 6630902 6630903 6630904 6630905 6630906 6630907 6630911 6630912 6630913
ISO NO.500. 104... 001 175 027 001 175 031 001 175 040 004 175 050 001 175 060 113 175 060 143 175 060 199 175 031 200 175 045 201 175 040

Plain cut standard
L mm 15.0 14.0 12.0 11.0 12.0 12.0 11.5 14.0 14.0 9.5
Size mm 6.0 6.0 6.0 6.0 6.0 6.0 4.0 6.0 6.0 6.0
Order.No. 6630914 6630915 6630916 6630917 6630918 6630919 6630920 6630921 6630922 6630923
ISO NO.500. 104... 201 175 060 201 175 060 237 175 060 237 175 060 257 175 060 263 175 060 274 175 040 275 175 060 275 175 060 277 175 060

ISO 215
Plain cut coarse
L mm 12.5 13.0 15.0 12.0 12.0 12.0 14.0
Size mm 6.0 4.5 6.0 6.0 6.0 6.0 6.0
Order No. 6631001 6631002 6631003 6631004 6631005 6631006 6631007
ISO NO.500. 104... 143 215 060 200 215 045 201 215 060 237 215 060 257 215 060 263 215 060 275 215 060

ISO 222
Plain cut super
L mm 12.5 14.0 14.0
Size mm 6.0 7.0 6.0
Order No. 6631101 6631102 6631103
ISO NO.500. 104... 143 222 060 263 222 070 275 222 060

ISO 176
Plain toothing with cross cut 图片1 图片2 图片3 图片4 图片5 图片6
L mm 14.0 14.0 9.0 12.0 14.0 14.0
Size mm 2.3 4.5 4.0 6.0 7.0 6.0
Order No. 6631201 6631202 6631203 6631204 6631205 6631206
ISO NO.500. 104... 201 176 023 201 176 045 237 176 040 263 176 060 263 176 070 275 176 060

ISO 141
Diamond cut for slightly rough surface
L mm 8.0 16.0 14.0 8.0 16.0
Size mm 2.3 2.3 4.5 2.3 2.3
Order No. 6631601 6631602 6631603 6631604 6631605
ISO NO.500. 104... 141 141 023 145 141 023 201 141 045 289 141 023 292 141 023

ISO 191
Diamond cut with prism surface
L mm 16.0 14.0 14.0 8.0 16.0
Size mm 2.3 2.3 4.5 2.3 2.3
Order No. 6631701 6631704 6631705 6631706 6631707
ISO NO.500. 104... 145 191 023 201 191 023 201 191 045 289 191 023 292 191 023

ISO 137
Spiral cut super fine
L mm 8.0 8.0 8.0 13.5 14.0 8.0
Size mm 2.3 1.6 2.3 4.0 6.0 2.3
Order No. 6631301 6631303 6631304 6631305 6631307 6631308
ISO NO.500. 104... 141 137 023 198 137 016 198 137 023 200 137 040 275 137 060 289 137 023

ISO 134
Spiral cut fine
L mm 13.5 9.5 14.0 14.0 9.0 5.5 5.0 11.5 14.0 11.5
Size mm 2.3 2.3 4.0 2.3 2.3 2.3 2.3 4.0 6.0 2.3
Order No. 6631401 6631402 6631406 6631407 6631408 6631409 6631410 6631411 6631412 6631413
ISO NO.500. 104... 143 134 023 184 134 023 196 134 040 201 134 023 201 134 023 237 134 023 274 134 023 274 134 040 275 134 060 290 134 023

ISO 194
Titanium toothing coarse
L mm 8.0 8.0 8.0 13.0 8.0
Size mm 2.3 1.6 2.3 4.0 2.3
Order No. 6631501 6631502 6631503 6631504 6631505
ISO NO.500. 104... 141 194 023 198 194 016 198 194 023 200 194 040 289 194 023

Package

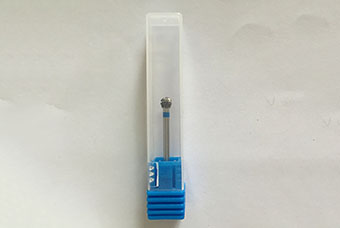

  • Tungsten Carbide Cutter Single Package
  •
  •
